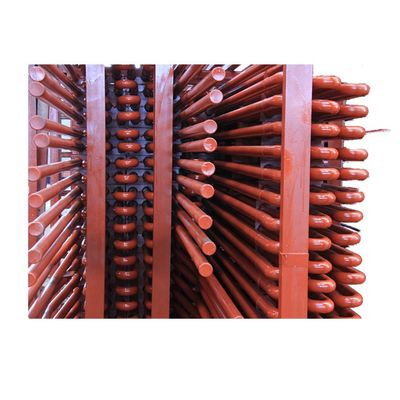

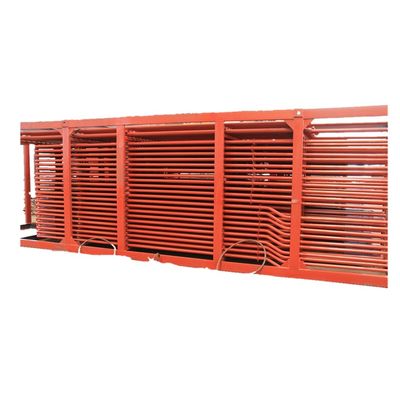

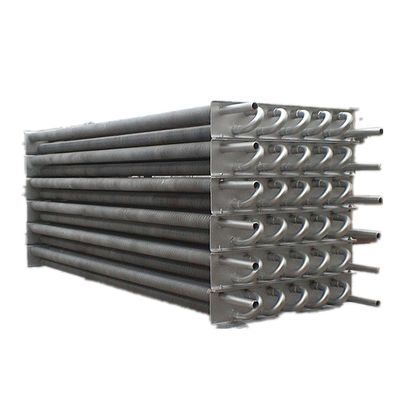

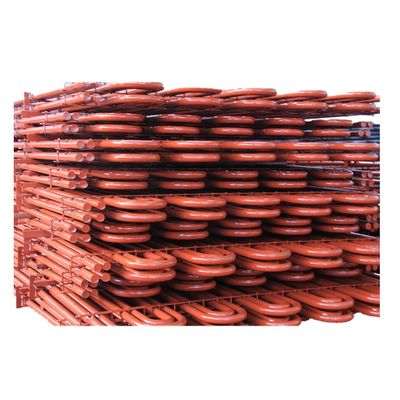

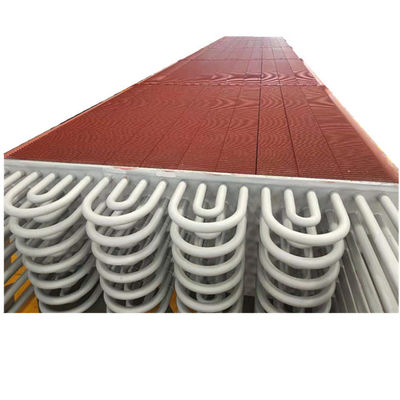

Low High Pressure Boiler Economizer with Max 60t/h Steam Production and Natural Circulation
| Plaats van herkomst | Zhangjiagang, China |
|---|---|
| Merknaam | HD Boiler |
| Certificering | ISO9001,ASME,SGS,EN,TUV |
| Modelnummer | Kaal type economizer |
| Min. bestelaantal | 10 ton |
| Prijs | $2,200-2,500 / ton |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skypen: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Type | Natuurlijke Omloop | Structuur | van de soort gebruikt voor de vervaardiging van motorvoertuigen |
|---|---|---|---|
| Druk | Laag/Hoge druk | Stoomproductie | Max. 60 t/h |
| Stijl | Verticaal | Brandstof | Koolbrandstoffen |
| Uitvoer | Warm water/Stoom | Oppervlaktebehandeling | Geschilderd |
| Kale pijp OD | 25-1650 mm | Kale pijpdikte | 2-40 mm |
| Vindikte | 00,6-3,0 mm | Vinhoogte | 5-30 mm |
| Vinbuisveld | 5-30 mm | Vinbuislengte | ≤12000 mm |
| Materiaal | Koolstofstaal, legering, austenitisch staal | ||
| Markeren | Max 60t/h Steam Production Boiler Economizer,Low High Pressure Boiler Economizer,Natural Circulation Boiler Economizer |
||
Productomschrijving
Low / High Pressure Flue Gas Boiler Economizer Heat Exchanger Devices With Finned Tubes
Boiler Economizer
Introduction
Economisers perform a key function in providing high overall boiler thermal efficiency by recovering low-level energy from flue gas before it is exhausted to the atmosphere. They recover this energy by heating the boiler feedwater. Economisers are tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces, reducing operating costs by recovering extra energy from flue gas.
Procedure
Economisers reduce the potential for thermal shock and strong water temperature fluctuations as feed water enters the drum or waterwalls. They also help meet stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emissions. The gas-side heat transfer coefficient is much lower than the water-side coefficient, so outer tube surfaces may be finned to increase heat transfer area. Economiser design aims to achieve necessary heat transfer at minimum cost, with maximum allowable flue gas velocity being a key criterion.
Specifications
| Name (unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
Material: Carbon Steel, Alloy, Austenitic Steel (Nickel and Chromium or Manganese)
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure boiler quality
- Hydraulic test report to ensure standard working pressure and safety
